One out of two pitches 114.3mm ZY-02SF 114.3mm

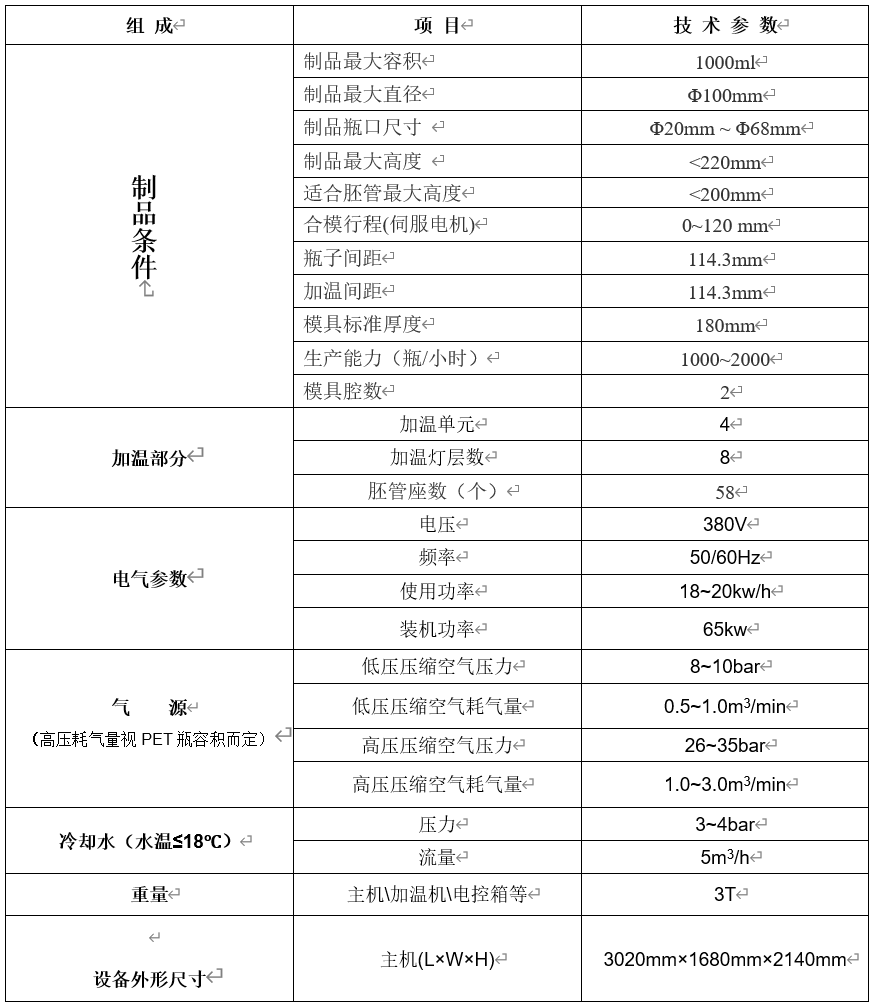

Machine Features:
1. Two-cavity blow molding, maximum product volume 1000ml, theoretical output 1000-2000 bottles per hour.
2. Suitable for producing PET containers with a bottle mouth diameter of Φ20mm ~ Φ68mm, a maximum diameter of Φ100mm, and a height <220mm.
3. This equipment adopts a fully enclosed design. Bottles are transported to the bottle warehouse via a robotic arm and conveyor belt, reducing intermediate links. Throughout the production process, there is no need for manual contact with the bottles, ensuring that the bottles remain uncontaminated and meet national hygiene standards.
4. Short cycle time, high daily output. Low consumption, high degree of automation, and labor cost savings.
5. Uses an imported control system, stable performance, and easy operation.
Keywords：
One out of two pitches 114.3mm ZY-02SF 114.3mm
- Product description
Product Inquiry
Business scope: Production of plastic packaging machinery and equipment, manufacturing of ready-to-drink water filling equipment, manufacturing of bearing gears and transmission components, manufacturing of gas compression machinery, molds and injection-molded preforms. Manufacturing of water resource treatment equipment, high and low voltage switchgear manufacturing, transformers, etc. Agency sales of servo motors and PLCs.
